Corner arrangements

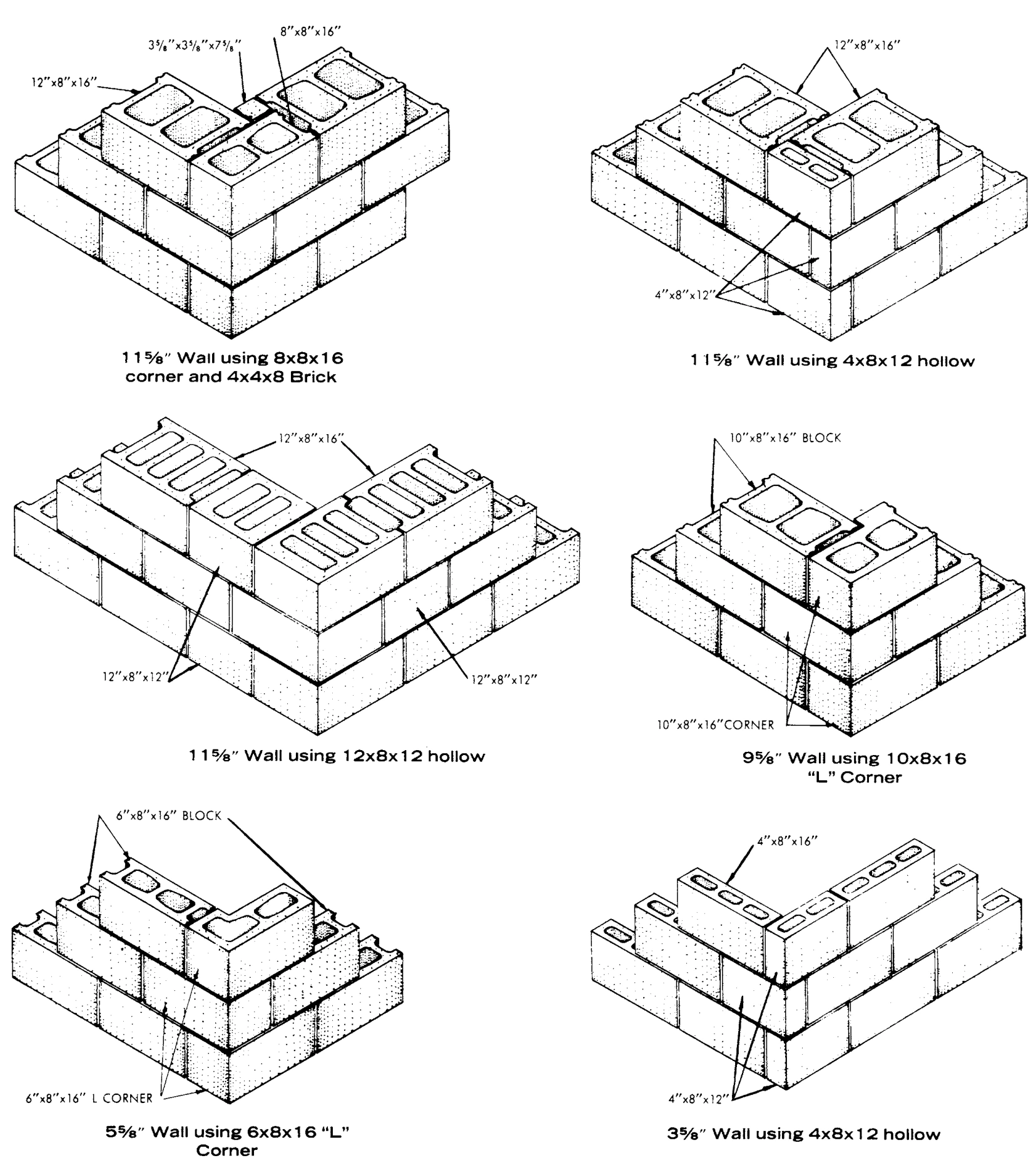

These reference drawings show how companion shapes can meet at corners. Match the unit width, bond pattern and exact corner units to the project drawings. They illustrate arrangements, not approved construction details.
Wall, reinforcement and pilaster details

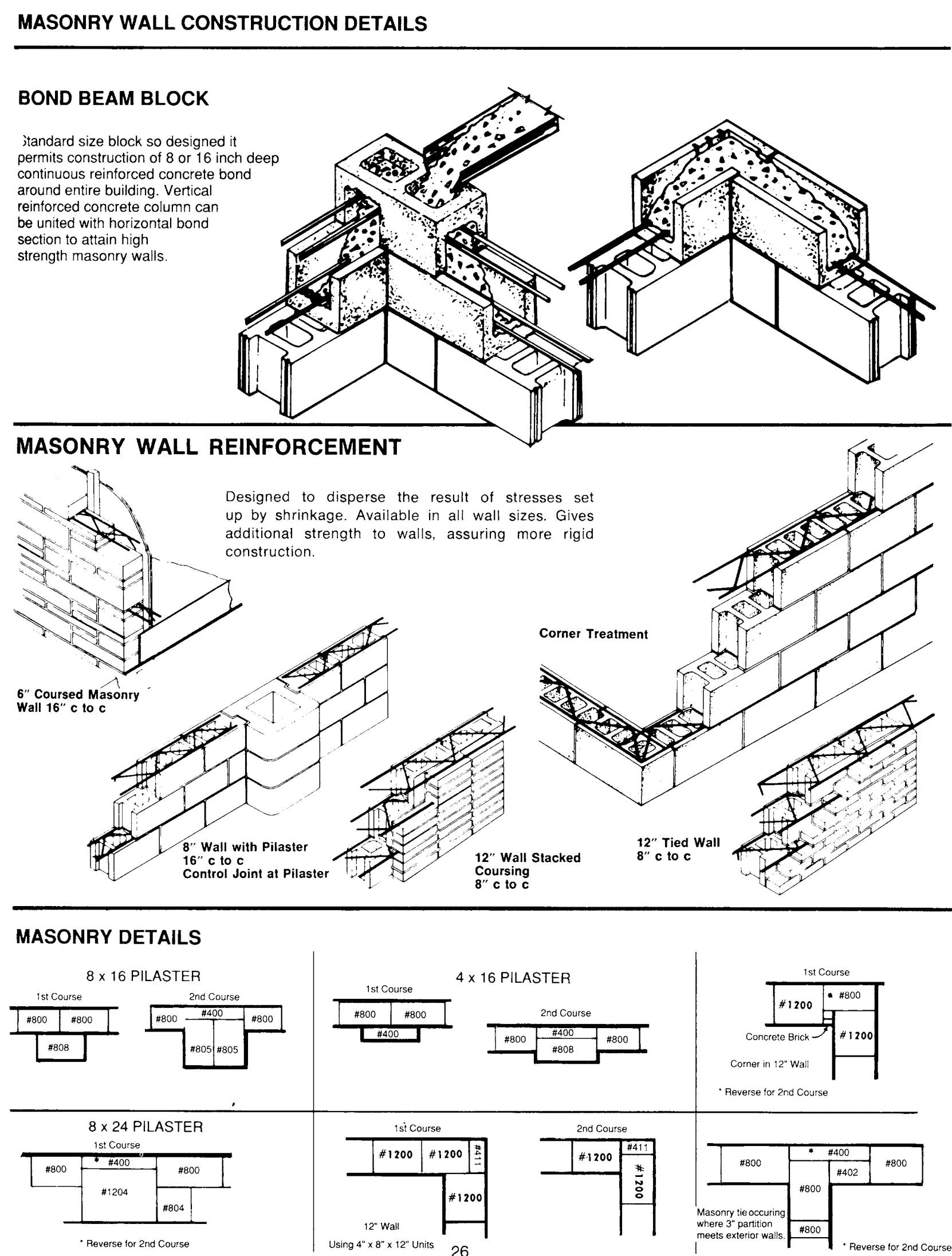

Review wall intersections, pilasters, reinforcement, grout spaces, lintels and bond beams as a complete assembly. Reinforcement size, spacing, anchorage and loads must come from the project’s qualified designer.
Use the reference sketches to identify the detail you need help locating. Do not scale dimensions or select reinforcement from the sketches alone.
Bring the details with you
Share the wall thickness, unit shape, opening sizes and structural drawings. Include the required finish on exposed faces and any special corner or termination. This helps the team identify the appropriate shapes and quantities.
Use these resources to prepare for a project conversation. Confirm current products, dimensions and availability with Krebs; construction and performance requirements must follow the project’s applicable specifications.
