Start with net wall area
For an 8 × 16-inch face module, one square foot of wall represents 1.125 modules (often rounded to 1.13). Start with wall length × height, then account for openings, corners, specialty shapes and a project-appropriate allowance. This is a planning relationship, not a final order quantity.
| Reference unit | Approximate units per square foot |
|---|---|
| Standard 8 × 8 × 16 block | 1.125 (often rounded to 1.13) |
| Regular brick reference | 7.0 — confirm actual brick size and joint |
| Oversize brick reference | 5.5 — confirm actual brick size and joint |
Core-fill reference volumes
These historical reference volumes are approximate. Core geometry, reinforcement, solid portions and the selected unit affect actual grout requirements. Confirm the unit and approved grout specification before estimating an order.
| Nominal unit | Cores | Reference cubic feet per unit |
|---|---|---|
| 6 × 8 × 16 | 2 | 0.17 |
| 8 × 8 × 16 | 2 | 0.25 |
| 8 × 8 × 16 | 3 | 0.22 |
| 10 × 8 × 16 | 2 | 0.33 |
| 12 × 8 × 16 | 2 | 0.39 |
Converting volume
There are 27 cubic feet in one cubic yard. As an arithmetic example only, 5,000 units at 0.25 cubic feet each gives 1,250 cubic feet, or approximately 46.30 cubic yards before project allowances. Confirm the actual fill volume instead of treating this example as a mix order.
Lintels and bond beams

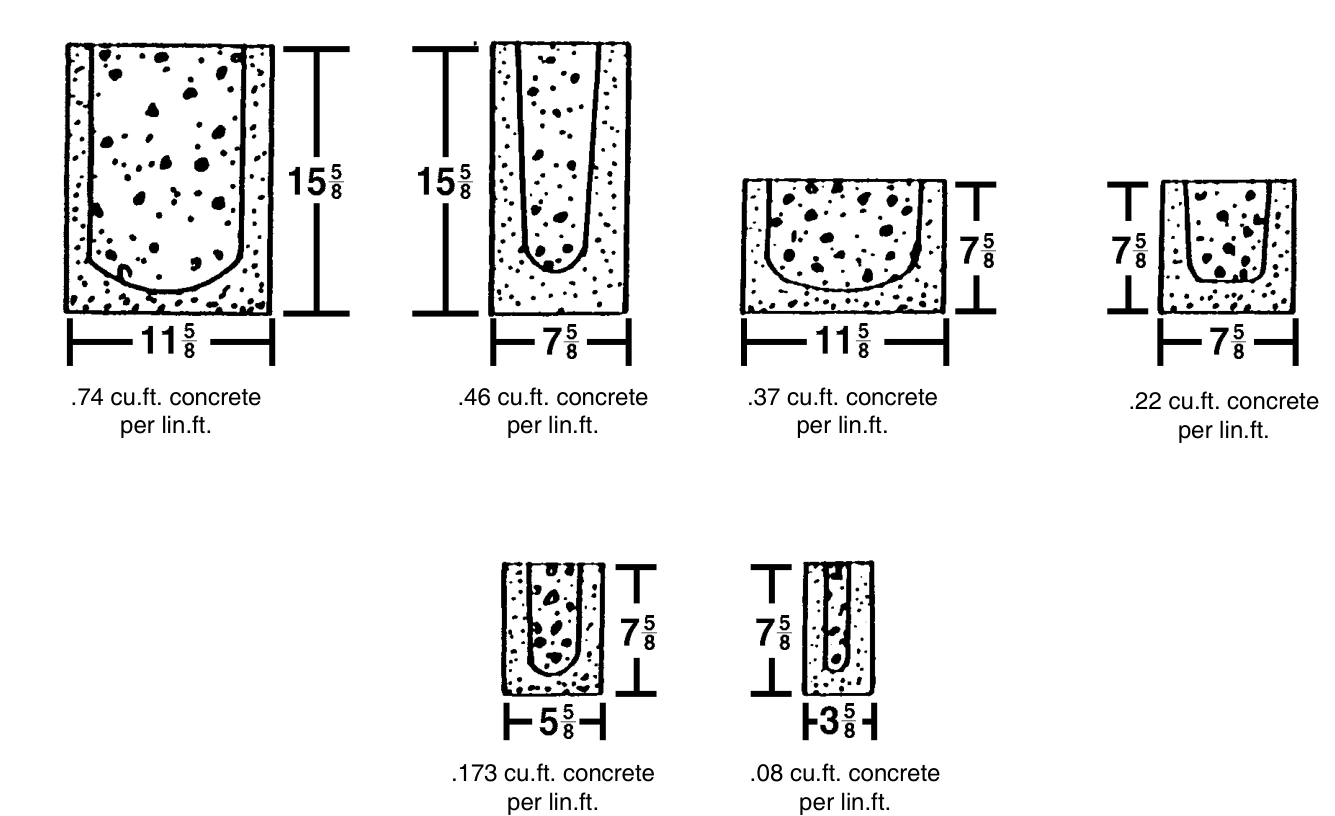

Fill volume depends on the channel and shape. The reference sketches show approximate volumes per linear foot for the illustrated profiles. Match the complete drawing and obtain current unit information before using a value.
Mortar quantities need confirmation
The supplied estimating references disagree on cement-bag and sand quantities for several block sizes. A single automated calculator would conceal that difference. Krebs can help confirm a takeoff for the chosen unit, joint, mortar product and laying method.
For a useful estimate, bring wall dimensions, openings, block sizes, finish requirements, reinforced cells, lintel lengths and the specified mortar and grout.
Use these resources to prepare for a project conversation. Confirm current products, dimensions and availability with Krebs; construction and performance requirements must follow the project’s applicable specifications.
